Vertical Autoclave/Steam sterilizers IVA-2600WC are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply. Equipped with an effective air-cooling system for liquid sterilisation. This speeds cooling time by up to 40% compared to standard models. The Iris Vertical Autoclaves are available in 110 liters, chamber capacity. All are built with castor wheels as standard making them easy to move.
The IVA-2600WC is widely used for sterilisation applications in laboratory, hospitals, and clinics as well as for industrial sterilisation applications in biotechnology and pharmaceutical industries. Comes with sterilization cycle including Solid cycle, Liquid cycle, Liquid with warming cycle, Agar cycle, Solid with drying (for WC model),Medical waste cycle, Customized cycle.
Data sheet
Model | IVA-2200 | IVA-2200C | IVA-2200WC | IVA-2400 | IVA-2400C | IVA-2400WC | IVA-2600 | IVA-2600C | IVA-2600WC |
Capacity | 60 L | 85 L | 110 L | ||||||
Chamber Capacity | 400x505 mm | 400x700 mm | 400x895 mm | ||||||
Materials | SUS 304 | ||||||||
Sterilization Cycle | Solid cycle, Liquid cycle, Liquid with warming cycle, Agar cycle, Solid with drying (for WC model),Medical waste cycle, Customized cycle | ||||||||
Temperature Accuracy | 0.1? | ||||||||
Melting Temperature | 60 to 100? | ||||||||
Melting Time | 1 to 6000 minutes | ||||||||
Operating Pressure | 0.27Mpa | ||||||||
Maximum Pressure | 0.35Mpa | ||||||||
Steel Basket | 2x(360x200) | 2x(360x280) | 3x(360x250) | ||||||
Sterilization Tem | 105-138? | ||||||||
Sterilization Time Range | 1 to 6000 minutes | ||||||||
Drying Temp | 80 to 140? | ||||||||
Drying Time Range | 1 to 300 minutes | ||||||||
Working Temperature | 5 to 45? | ||||||||
Humidity | 10 to 85% | ||||||||
Certification | - | - | - | - | - | - | - | - | - |
Power Consumption | 2900 W | 4600 W | 4600 W | ||||||
Dimension | 660x644x980 mm | 660x831x980 mm | 660x644x980 mm | 660x831x980 mm | 660x644x1180 mm | 660x831x1180 mm | |||
Electrical Requirement | 220V,16A, 50/60HZ | 220V,32A?50/60HZ | 220V,32A?50/60HZ | ||||||
Catalogue No. | 580450502 | 580451002 | 580451502 | 580452002 | 580452502 | 580453002 | 580453502 | 580454002 | 580454502 |
| Model | IVA-2200 | IVA-2200C | IVA-2200WC | IVA-2400 | IVA-2400C | IVA-2400WC | IVA-2600 | IVA-2600C | IVA-2600WC |
| Capacity | 60 L | 85 L | 110 L | ||||||
| Chamber Capacity | 400x505 mm | 400x700 mm | 400x895 mm | ||||||
| Materials | SUS 304 | ||||||||
| Sterilization Cycle | Solid cycle, Liquid cycle, Liquid with warming cycle, Agar cycle, Solid with drying (for WC model),Medical waste cycle, Customized cycle | ||||||||
| Temperature Accuracy | 0.1? | ||||||||
| Melting Temperature | 60 to 100? | ||||||||
| Melting Time | 1 to 6000 minutes | ||||||||
| Operating Pressure | 0.27Mpa | ||||||||
| Maximum Pressure | 0.35Mpa | ||||||||
| Steel Basket | 2x(360x200) | 2x(360x280) | 3x(360x250) | ||||||
| Sterilization Tem | 105-138? | ||||||||
| Sterilization Time Range | 1 to 6000 minutes | ||||||||
| Drying Temp | 80 to 140? | ||||||||
| Drying Time Range | 1 to 300 minutes | ||||||||
| Working Temperature | 5 to 45? | ||||||||
| Humidity | 10 to 85% | ||||||||
| Certification | - | - | - | - | - | - | - | - | - |
| Power Consumption | 2900 W | 4600 W | 4600 W | ||||||
| Dimension | 660x644x980 mm | 660x831x980 mm | 660x644x980 mm | 660x831x980 mm | 660x644x1180 mm | 660x831x1180 mm | |||
| Electrical Requirement | 220V,16A, 50/60HZ | 220V,32A?50/60HZ | 220V,32A?50/60HZ | ||||||
| Catalogue No. | 580450502 | 580451002 | 580451502 | 580452002 | 580452502 | 580453002 | 580453502 | 580454002 | 580454502 |
Vertical Autoclave/Steam sterilizers IVA-3100 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
Programmable Horizontal Autoclave/Steam Sterilizer IHA-7100 basic 196L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Vertical Autoclave/Steam sterilizers IVA-3135 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
The ITA-317 front loading ‘Benchtop’ autoclave range is available in 17 L size. These units require no plumbing, and only a standard single phase power supply. Build in LCD display with 8 programs automatically feeding water and draining water system which is easy to operate and complete automatic operation, check and monitor by computer
The ITA-218 front loading ‘Benchtop’ autoclave range is available in four sizes. These units require no plumbing, and only a standard single phase power supply. A 5.7-inch colour touchscreen with integrated USB data port. Electro polished stainless steel chamber.
Vertical Autoclave/Steam sterilizers IVA-4100 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
Double Door Horizontal Autoclave/Steam Sterilizer IHA-8200D basic 250L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Touch Screen Horizontal Autoclave/Steam Sterilizer IHA-3140 basic 140L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Vertical Autoclave/Steam sterilizers IVA-1400D are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
The ITA-323 front loading ‘Benchtop’ autoclave range is available in 23 L size. These units require no plumbing, and only a standard single phase power supply. Build in LCD display with 8 programs automatically feeding water and draining water system which is easy to operate and complete automatic operation, check and monitor by computer
Pulse Vacuum Vertical Autoclave/Steam sterilizers IVA-5050 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply. Equipped with an effective air-cooling system for liquid sterilization.
Steam Sterilisers/Autoclave IHA-1060 basic 60 L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use. The IHA-1060 comes with external steam generator that can evaporate water quickly,
Vertical Autoclave/Steam sterilizers IVA-4050 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
Pulse Vacuum Vertical Autoclave/Steam sterilizers IVA-5035 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply. Equipped with an effective air-cooling system for liquid sterilization.
Digital Autoclave/Steam Sterilizer IHA-5200 basic 200 L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.

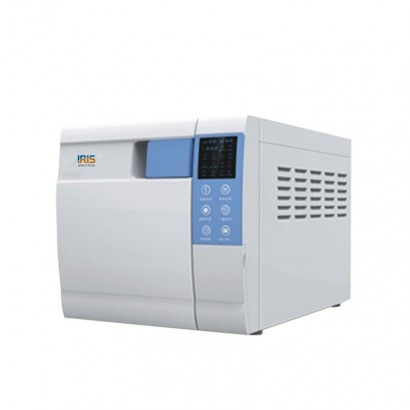

The ITA-223 front loading ‘Benchtop’ autoclave range is available in four sizes. These units require no plumbing, and only a standard single phase power supply. A 5.7-inch colour touchscreen with integrated USB data port. Electro polished stainless steel chamber.
