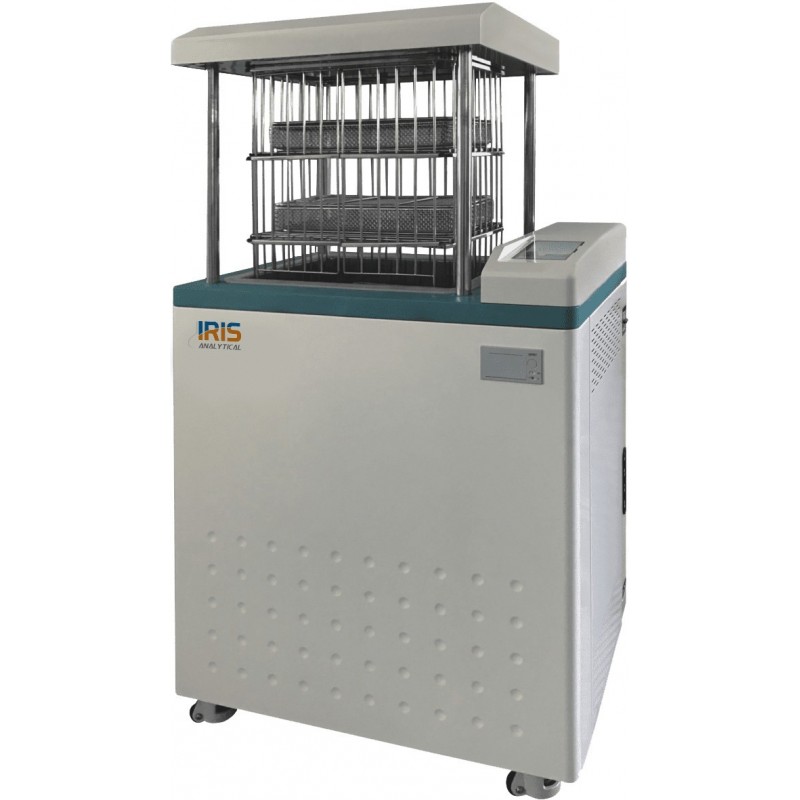

Touch Screen Pulse Vacuum Vertical Autoclave/Steam sterilizers IVA-6020 designed with elevating type door, which is more convenient to place and fetch the objects from the autoclave. Build in 7-inch capacitive touch screen, fully automatically controlled, easy to operate.
Touch Screen Pulse Vacuum Vertical Autoclave/Steam sterilizers IVA-6020 designed with elevating type door, which is more convenient to place and fetch the objects from the autoclave. Build in 7-inch capacitive touch screen, fully automatically controlled, easy to operate.
The whole procedure from water inlet, pulse vacuum, heat, sterilizing, water outlet, exhausting to vacuum drying, which are all automatically by one-key operation. are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply. Equipped with an effective air-cooling system for liquid sterilisation. This speeds cooling time by up to 40% compared to standard models.
The Iris Vertical Autoclaves are available 60 litres chamber capacity. All are built with castor wheels as standard making them easy to move. The IVA-6020 is widely used for sterilisation applications in laboratory, hospitals, and clinics as well as for industrial sterilisation applications in biotechnology and pharmaceutical industries.
Data sheet
Model | IVA-6020 | IVA-6040 | IVA -6060 | IVA-6080 | ||||
Chamber volume | 60L | 80L | 100L | 120L | ||||
Chamber size | 396×490 mm | 396×650 mm | 504×404×502 mm | 504×404×590 mm | ||||
The height after rising | 1310 mm | 1590 mm | 1475 mm | 1565mm | ||||
Working pressure | 0.22MPa | |||||||
Working temperature | 134? | |||||||
Heat average | ?±1? | |||||||
Timer | 0 to 99 minutes | |||||||
Temp. Adjustment | 105 to 134? | |||||||
Power | Steam generator 3.0KW; Drying 2.4 KW | Steam generator 3.6KW; Drying 2.4 KW | ||||||
Overall Dimensions | 686x556x913 mm | 686x556x1035 mm | 840x600x970 mm | 840x600x1060 mm | ||||
Shipping Dimensions | 786x656x1013 mm | 786x656x1135 mm | 940x610x1000 mm | 940x610x1075 mm | ||||
Net Weight | 180 Kg | 200 Kg | 270 Kg | 295 Kg | ||||
Gross Weight | 210 Kg | 230 Kg | 300 Kg | 325 Kg | ||||
Electrical Requirements | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz |
Catalogue No. | 580650501 | 580650502 | 580651001 | 580651002 | 580651501 | 580651502 | 580652001 | 580652002 |
| Model | IVA-6020 | IVA-6040 | IVA -6060 | IVA-6080 | ||||
| Chamber volume | 60L | 80L | 100L | 120L | ||||
| Chamber size | 396×490 mm | 396×650 mm | 504×404×502 mm | 504×404×590 mm | ||||
| The height after rising | 1310 mm | 1590 mm | 1475 mm | 1565mm | ||||
| Working pressure | 0.22MPa | |||||||
| Working temperature | 134? | |||||||
| Heat average | ?±1? | |||||||
| Timer | 0 to 99 minutes | |||||||
| Temp. Adjustment | 105 to 134? | |||||||
| Power | Steam generator 3.0KW; Drying 2.4 KW | Steam generator 3.6KW; Drying 2.4 KW | ||||||
| Overall Dimensions | 686x556x913 mm | 686x556x1035 mm | 840x600x970 mm | 840x600x1060 mm | ||||
| Shipping Dimensions | 786x656x1013 mm | 786x656x1135 mm | 940x610x1000 mm | 940x610x1075 mm | ||||
| Net Weight | 180 Kg | 200 Kg | 270 Kg | 295 Kg | ||||
| Gross Weight | 210 Kg | 230 Kg | 300 Kg | 325 Kg | ||||
| Electrical Requirements | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz | 110V/60Hz | 220V/50Hz |
| Catalogue No. | 580650501 | 580650502 | 580651001 | 580651002 | 580651501 | 580651502 | 580652001 | 580652002 |
Horizontal Autoclave/Steam Sterilizer IHA-4200 basic 200L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Touch Screen Horizontal Autoclave/Steam Sterilizer IHA-3100 basic 100L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Double Door Horizontal Autoclave/Steam Sterilizer IHA-8200D basic 250L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Horizontal Autoclave/Steam Sterilizer IHA-4300 basic 280L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Pulse Vacuum Vertical Autoclave/Steam sterilizers IVA-5075 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply. Equipped with an effective air-cooling system for liquid sterilization.
Touch Screen Pulse Vacuum Vertical Autoclave/Steam sterilizers IVA-6040 designed with elevating type door, which is more convenient to place and fetch the objects from the autoclave. Build in 7-inch capacitive touch screen, fully automatically controlled, easy to operate.
Touch Screen Pulse Vacuum Vertical Autoclave/Steam sterilizers IVA-6080 designed with elevating type door, which is more convenient to place and fetch the objects from the autoclave. Build in 7-inch capacitive touch screen, fully automatically controlled, easy to operate.

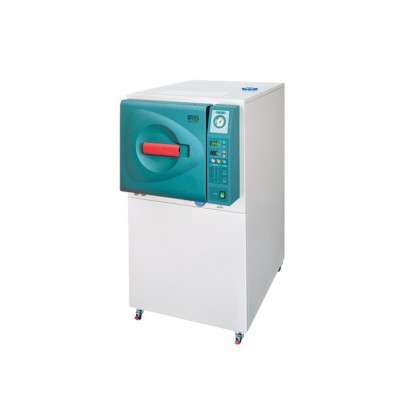

Steam Sterilisers/Autoclave IHA-1060 basic 60 L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use. The IHA-1060 comes with external steam generator that can evaporate water quickly,
Pulse Vacuum Large Horizontal Autoclave/Steam Sterilizer IHA-6100 basic 250L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Vertical Autoclave/Steam sterilizers IVA-2400C are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
Vertical Autoclave/Steam sterilizers IVA-1200 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.

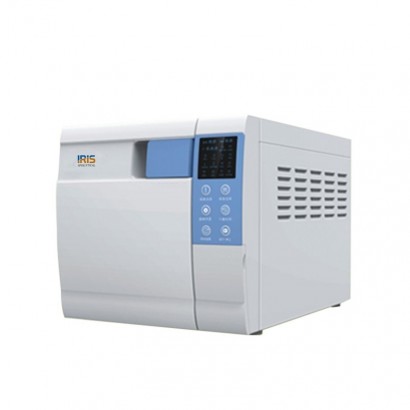

The ITA-212 front loading ‘Benchtop’ autoclave range is available in four sizes. These units require no plumbing, and only a standard single phase power supply. A 5.7-inch colour touchscreen with integrated USB data port. Electro polished stainless steel chamber.
