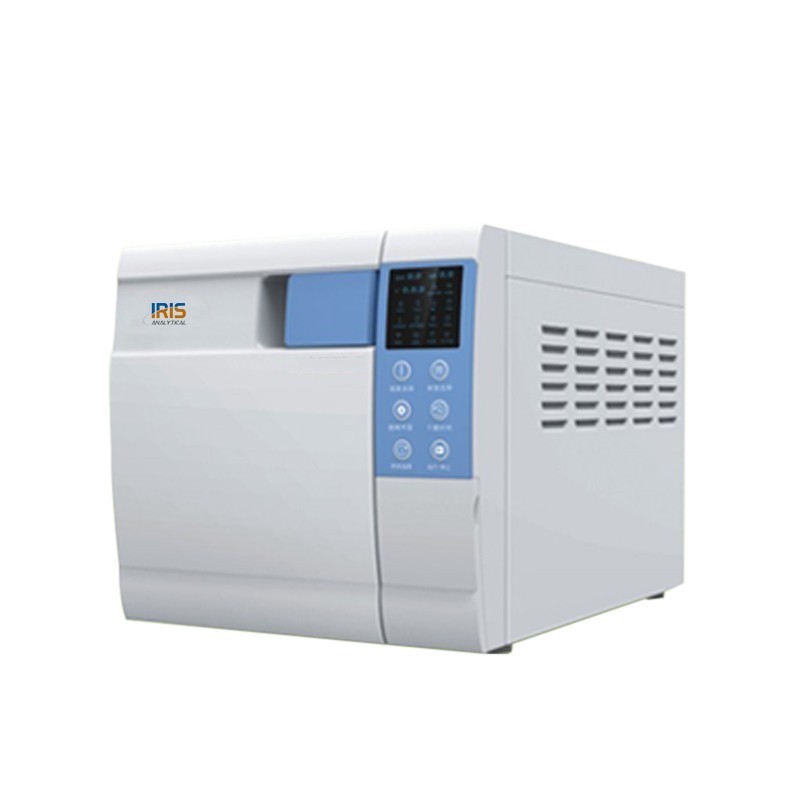

Tabletop Autoclave ITA-223(110V/60Hz)

$2,700.00

Quantity

3-4 Weeks

The ITA-223 front loading ‘Benchtop’ autoclave range is available in four sizes. These units require no plumbing, and only a standard single phase power supply. A 5.7-inch colour touchscreen with integrated USB data port. Electro polished stainless steel chamber. Simple pre-post vacuum option available with adjustable time and temperature range. The ITA-223 is available in four sizes 23 L and is one of the most energy efficient autoclaves available. The pressure vessel design ensures the absolute minimum amount of water is used during a sterilization cycle, which not only means comparably low power consumption, but also very quick heating and cooling. A benchtop autoclave has a variety of uses, being suitable for sterilizing laboratory glassware, plastic receptacles and containers, petri dishes, un-wrapped instruments, media, and occasional discard loads.

In addition to laboratory use, it is widely used in scientific research, process manufacturing, veterinary and medical healthcare industries.

Reference 580052001

Data sheet

Sterilisation Temperature (℃ ): 121℃,134℃
Operating Temperature (℃ ): 134 °C
Chamber Dimensions (mm): 250x450 mm
Capacity (liters): 23 L
Model: ITA-223
Warming Time: 0 to 7 minutes
Drying Time: 18 minutes
Safety Devices: Safety valve, Pressure interlock, door alarm, automatic breakdown check. Over temperature and pressure protected.
External Dimensions (w x d x h) mm: 625x425x456 mm
Shipping Dimensions (w x d x h) mm: 750x545x450 mm
Power (W): 2000 W
Electrical Requirements: 110V/60Hz
Catalogue No.: 580052001
Working Pressure: 2.1 bar

LCD display panel
Adopt Motorola sensor for intelligent and precise control as well as fault auto-detection technique
Precise temperature control (±0.5?) during sterilization process
Built-in program to clean the pipelines automatically and avoid the blockage
Built-in water quality, water shortage and water overrun monitoring features
Safety value, double lock, mechanical lock, air lock and multi-level protection to ensure the pressure is safe
Optional for printer, built-in USB module to output the sterilization data via USB Flash.
Widely applied in orthopaedics, ophthalmology and beauty etc. industries.
Micro-computer control, imported Motorola sensor, high accusation and precision.
During the sterilizing procedure, the range of temperature is ±0.5.
Automatic cleaning program in the steamer, avoid the occlusion.
Display the sterilizing procedure date and curve.
Water quality monitoring, indicate the water tank condition, automatic notice when used water tank is full.
Safety valve, double lock, mechanical lock, air lock, multi pressure safe protection device.
Printer is optional, record the sterilizing procedure with USB.
Applied with orthopaedics, ophthalmology, beauty industries and other area.
Built-in USB interface, can store up to 2000 data cycles
Sterilisation data can be transferred to computer/printer
New Tabletop Water tank design
Pressure, mechanical, electronic door lock system, completely cut off hidden danger.
Double temperature monitoring system, analyze and compare the different temperature of the tank, to guarantee and control every heating stage accurately.
Adopt high analytical pressure sensor, the pressure can accurate to 0.001 bar, in the mean time we add sampling system to improve the accuracy of information.
Circular heating reaches minimum temperature difference. Pressure-prevention and corruption-resistance makes it highly reliable. Alloy heating loop protects against damage by no-water heating.
High efficiency double pump, low noise, vacuum ability can reach -0.92 bar, double head ensure the balance during working and stable vacuum state in the chamber.
Raise 10 times temperature controlling precision system, can accurate to0.1°C.
Stable ULKA water pump
Pass by all kinds of bacteria test, come with B&D testing system, vacuum testing system
Original fuzzy control system driven by steam generator adopts 0WM(pulse with modulation), able to discriminate the fine differences in temperature allowances and to adjust the modulated waves correspondingly thus making temperature rise at the same speed each time

Model	ITA-212		ITA-216		ITA -218		ITA-223
Chamber Volume	12 L		16 L		18 L		23 L
Insulation Class	class B
Control Accuracy	Temperature 0.1 ?, Pressure 0.001 bar
Sterilization Level	Class B
Sterilization Temperature	121?,134?
Special Sterilization	HIV/AIDS, hepatitis b (HBV), mad cow virus and spore.
Drying Procedure	A strong negative vacuum drying
Operation Interface	Adopt the operation of the new interface LCD screen can display temperature and pressure time running state, fault alarm information, etc
Test system	Bowie & Dick Steam penetration test, Vacuum test, Helix test
Control Accuracy	Temperature 0.1°C, pressure 0.1 K pa.
Sterilization Data	External USB connection , (printer is optional)
Multiple Safety	Interlock protection device: Safety valve, Pressure interlock, door alarm, automatic breakdown check. Over temperature and pressure protected.
Water System	Internal open water tank, easy to clear.
Sterilization Configuration	Activities tray rack, match 3 pallets
Display	LCD display
Working Temperature	134 °C
Working Pressure	2.1 bar
Warm Up Time	0 to 7 minutes
Pump down Time	10 minutes
Air Intake Time	4 minutes
Working Time	6 minutes
Drying Time	18 minutes
Quick Drying Time	9 minutes
Total Time	40 minutes
Security	Safety valve, pressure system, mechanical and electric lock. Self-diagnosis, pressure-protection device, heating-exceeding
Test Programmers	Helix/BD Test; Vacuum Test
Drying Progress	3-times pulsation vacuum, temperature less than 0.2% after finish
Interface	USB/External Printer
Power Consumption	1600 W		1700 W		1800 W		2000 W
External Dimensions	625x425x456 mm		625x425x456 mm		625x425 x456 mm		625x425 x456 mm
Chamber Dimensions	200x360 mm		230x360 mm		250x360 mm		250x450 mm
External Dimensions	616x460x420 mm		616x460x420 mm		616x460x420 mm		616x460x420 mm
Net Weight	-		-		-		-
Shipping Dimensions	655x545x450 mm		655x545x450 mm		655x545x450 mm		750x545x450 mm
Gross Weight	-		-		-		-
Electrical Requirements	110V/60Hz	220V/50Hz	110V/60Hz	220V/50Hz	110V/60Hz	220V/50Hz	110V/60Hz	220V/50Hz
Catalogue No.	580050501	580050502	580051001	580051002	580051501	580051502	580052001	580052002

Model	ITA-212		ITA-216		ITA -218		ITA-223
Chamber Volume	12 L		16 L		18 L		23 L
Insulation Class	class B
Control Accuracy	Temperature 0.1 ?, Pressure 0.001 bar
Sterilization Level	Class B
Sterilization Temperature	121?,134?
Special Sterilization	HIV/AIDS, hepatitis b (HBV), mad cow virus and spore.
Drying Procedure	A strong negative vacuum drying
Operation Interface	Adopt the operation of the new interface LCD screen can display temperature and pressure time running state, fault alarm information, etc
Test system	Bowie & Dick Steam penetration test, Vacuum test, Helix test
Control Accuracy	Temperature 0.1°C, pressure 0.1 K pa.
Sterilization Data	External USB connection , (printer is optional)
Multiple Safety	Interlock protection device: Safety valve, Pressure interlock, door alarm, automatic breakdown check. Over temperature and pressure protected.
Water System	Internal open water tank, easy to clear.
Sterilization Configuration	Activities tray rack, match 3 pallets
Display	LCD display
Working Temperature	134 °C
Working Pressure	2.1 bar
Warm Up Time	0 to 7 minutes
Pump down Time	10 minutes
Air Intake Time	4 minutes
Working Time	6 minutes
Drying Time	18 minutes
Quick Drying Time	9 minutes
Total Time	40 minutes
Security	Safety valve, pressure system, mechanical and electric lock. Self-diagnosis, pressure-protection device, heating-exceeding
Test Programmers	Helix/BD Test; Vacuum Test
Drying Progress	3-times pulsation vacuum, temperature less than 0.2% after finish
Interface	USB/External Printer
Power Consumption	1600 W		1700 W		1800 W		2000 W
External Dimensions	625x425x456 mm		625x425x456 mm		625x425 x456 mm		625x425 x456 mm
Chamber Dimensions	200x360 mm		230x360 mm		250x360 mm		250x450 mm
Internal Dimensions	616x460x420 mm		616x460x420 mm		616x460x420 mm		616x460x420 mm
Net Weight	-		-		-		-
Shipping Dimensions	655x545x450 mm		655x545x450 mm		655x545x450 mm		750x545x450 mm
Gross Weight	-		-		-		-
Electrical Requirements	110V/60Hz	220V/50Hz	110V/60Hz	220V/50Hz	110V/60Hz	220V/50Hz	110V/60Hz	220V/50Hz
Catalogue No.	580050501	580050502	580051001	580051002	580051501	580051502	580052001	580052002
