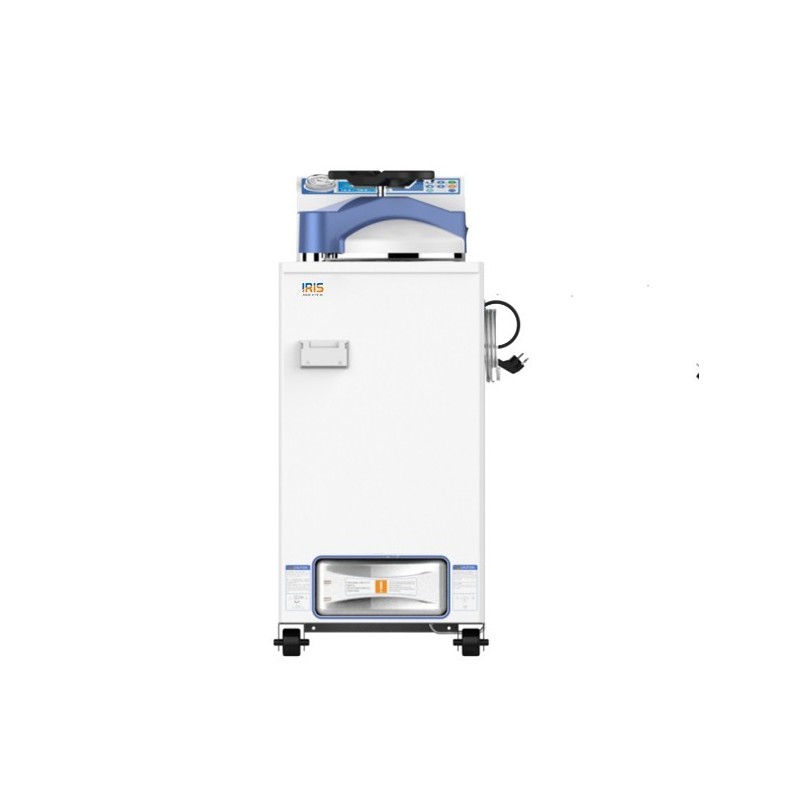

Vertical Autoclave/Steam sterilizers IVA-1600

$7,170.00

Vertical Autoclave/Steam sterilizers IVA-1600 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.

Quantity
3-4 Weeks
Share

Vertical Autoclave/Steam sterilizers IVA-1600 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply. Equipped with an effective air-cooling system for liquid sterilization. This speeds cooling time by up to 40% compared to standard models. The Iris Vertical Autoclaves are available in 54 liters, chamber capacity. All are built with castor wheels as standard making them easy to move. The IVA-1600 is widely used for sterilization applications in laboratory, hospitals, and clinics as well as for industrial sterilization applications in biotechnology and pharmaceutical industries. Comes with sterilization cycle including solid cycle, Liquid cycle, Liquid with warming cycle, Agar cycle, Solid with drying (for D model), Customized cycle.

580402502

Data sheet

Drying Temperature Range (℃ )
80 to 140℃
Sterilisation Temperature (℃ )
105-135℃
Operating Temperature (℃ )
5 to 45℃
Capacity (liters)
80L
Model
IVA-1600
Maximum Operating Pressure
0.3Mpa
Sterilisation Timer
1 to 6000 minutes
Melting Timer
1 to 6000 minutes
Drying Time
1 to 300 minutes
Stainless Wire Baskets
2x(360x280 mm)
External Dimensions (w x d x h) mm
620x680x1100 mm
Power (W)
4600 W
Electrical Requirements
220V,16A，50/60HZ
Catalogue No.
580402502
Working Pressure
0.25Mpa
  • Adopted microcomputer control system
  • Comes with Multilayered pressure protection system with automatic interlocking device
  • Real-time pressure changes monitoring
  • Comes with double over pressure protection with safety valve and a pressure protective device
  • Unique anti-scald design
  • Provide 5 sterilization cycles for sterilization, drying, warming of solid and liquid articles and for melting and warming of agar separately
  • Temperature and pressure: 105 to 135?,designed pressure:0.3Mpa
  • Automatic troubleshooting system
  • Provide safety with self-induction pressure interlocking device, lid closing checking, over temperature protection, temperature monitor, dry scorch protection system, over pressure protection, safety valve, over current and short circuit protection, leakage protection device, anti-scald safety protection, automatic troubleshooting

Model

IVA-1200

IVA-1200D

IVA-1400

IVA-1400D

IVA-1600

IVA-1600D

IVA-1800

IVA-1800D

Difference

Without Drying

With Drying

Without Drying

With Drying

Without Drying

With Drying

Without Drying

With Drying

Capacity

36 L

54L

80 L

100 L

Materials

SUS 304

Sterilization Cycle

Solid cycle, Liquid cycle, Liquid with warming cycle, Agar cycle, Solid with drying (for D model), Customized cycle

Temperature Accuracy

0.1?

Melting Temperature

60-100?

Melting Time

1 to 6000 minutes

Operating Pressure

0.25Mpa

Maximum Pressure

0.3Mpa

Steel Basket

2x(300x200 mm)

3x(300x200 mm)

2x(360x280 mm)

3x(360x220) mm

Sterilization Temperature

105-135?

Sterilization Time Range

1 to 6000 minutes

Drying Temperature

80 to 140?

Display

LCD

Drying Time Range

1 to 300 minutes

Working Temperature

5 to 45?

Humidity

10 to 85%

Certification

-

-

-

-

-

-

-

-

Storage

60 cycles, record 1000 process

Power Consumption

2300 W

2600 W

4600 W

4600 W

Dimension

460x542x1070 mm

460x542x1070 mm

620x680x1100 mm

620x680x1200 mm

Net Weight

















Electrical Requirement

220V,16A?50/60HZ

220V,32A?50/60HZ

Catalogue No.

580400502

580401002

580401502

580402002

580402502

580403002

580403502

580404002

Model

IVA-1200

IVA-1200D

IVA-1400

IVA-1400D

IVA-1600

IVA-1600D

IVA-1800

IVA-1800D

Difference

Without Drying

With Drying

Without Drying

With Drying

Without Drying

With Drying

Without Drying

With Drying

Capacity

36 L

54L

80 L

100 L

Materials

SUS 304

Sterilization Cycle

Solid cycle, Liquid cycle, Liquid with warming cycle, Agar cycle, Solid with drying (for D model), Customized cycle

Temperature Accuracy

0.1?

Melting Temperature

60-100?

Melting Time

1 to 6000 minutes

Operating Pressure

0.25Mpa

Maximum Pressure

0.3Mpa

Steel Basket

2x(300x200 mm)

3x(300x200 mm)

2x(360x280 mm)

3x(360x220) mm

Sterilization Temperature

105-135?

Sterilization Time Range

1 to 6000 minutes

Drying Temperature

80 to 140?

Display

LCD

Drying Time Range

1 to 300 minutes

Working Temperature

5 to 45?

Humidity

10 to 85%

Certification

-

-

-

-

-

-

-

-

Storage

60 cycles, record 1000 process

Power Consumption

2300 W

2600 W

4600 W

4600 W

Dimension

460x542x1070 mm

460x542x1070 mm

620x680x1100 mm

620x680x1200 mm

Net Weight

















Electrical Requirement

220V,16A?50/60HZ

220V,32A?50/60HZ

Catalogue No.

580400502

580401002

580401502

580402002

580402502

580403002

580403502

580404002
