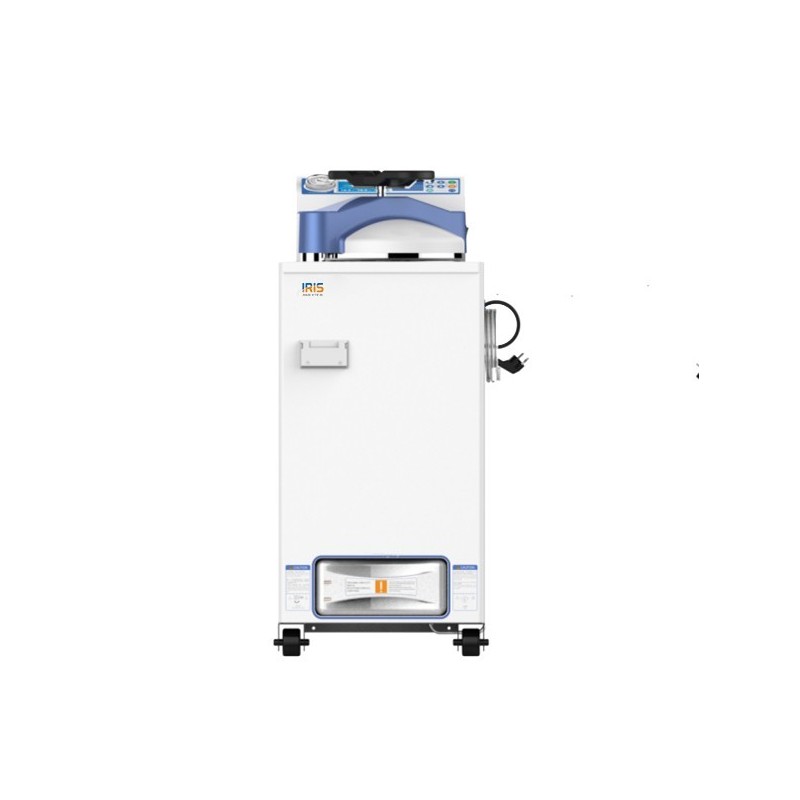

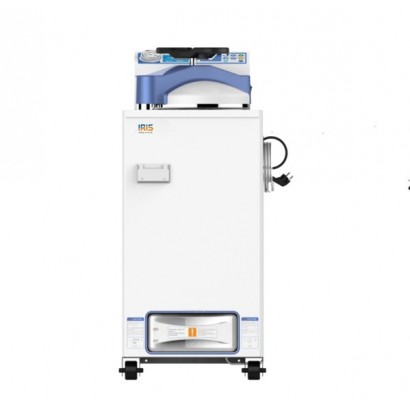

Vertical Autoclave/Steam sterilizers IVA-1600D are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply. Equipped with an effective air-cooling system for liquid sterilization. This speeds cooling time by up to 40% compared to standard models. The Iris Vertical Autoclaves are available in 54 liters, chamber capacity. All are built with castor wheels as standard making them easy to move. The IVA-1600D is widely used for sterilization applications in laboratory, hospitals, and clinics as well as for industrial sterilization applications in biotechnology and pharmaceutical industries. Comes with sterilization cycle including solid cycle, Liquid cycle, Liquid with warming cycle, Agar cycle, Solid with drying (for D model), Customized cycle.
Data sheet
Model | IVA-1200 | IVA-1200D | IVA-1400 | IVA-1400D | IVA-1600 | IVA-1600D | IVA-1800 | IVA-1800D |
Difference | Without Drying | With Drying | Without Drying | With Drying | Without Drying | With Drying | Without Drying | With Drying |
Capacity | 36 L | 54L | 80 L | 100 L | ||||
Materials | SUS 304 | |||||||
Sterilization Cycle | Solid cycle, Liquid cycle, Liquid with warming cycle, Agar cycle, Solid with drying (for D model), Customized cycle | |||||||
Temperature Accuracy | 0.1? | |||||||
Melting Temperature | 60-100? | |||||||
Melting Time | 1 to 6000 minutes | |||||||
Operating Pressure | 0.25Mpa | |||||||
Maximum Pressure | 0.3Mpa | |||||||
Steel Basket | 2x(300x200 mm) | 3x(300x200 mm) | 2x(360x280 mm) | 3x(360x220) mm | ||||
Sterilization Temperature | 105-135? | |||||||
Sterilization Time Range | 1 to 6000 minutes | |||||||
Drying Temperature | 80 to 140? | |||||||
Display | LCD | |||||||
Drying Time Range | 1 to 300 minutes | |||||||
Working Temperature | 5 to 45? | |||||||
Humidity | 10 to 85% | |||||||
Certification | - | - | - | - | - | - | - | - |
Storage | 60 cycles, record 1000 process | |||||||
Power Consumption | 2300 W | 2600 W | 4600 W | 4600 W | ||||
Dimension | 460x542x1070 mm | 460x542x1070 mm | 620x680x1100 mm | 620x680x1200 mm | ||||
Net Weight |
|
|
|
|
|
|
|
|
Electrical Requirement | 220V,16A?50/60HZ | 220V,32A?50/60HZ | ||||||
Catalogue No. | 580400502 | 580401002 | 580401502 | 580402002 | 580402502 | 580403002 | 580403502 | 580404002 |
| Model | IVA-1200 | IVA-1200D | IVA-1400 | IVA-1400D | IVA-1600 | IVA-1600D | IVA-1800 | IVA-1800D |
| Difference | Without Drying | With Drying | Without Drying | With Drying | Without Drying | With Drying | Without Drying | With Drying |
| Capacity | 36 L | 54L | 80 L | 100 L | ||||
| Materials | SUS 304 | |||||||
| Sterilization Cycle | Solid cycle, Liquid cycle, Liquid with warming cycle, Agar cycle, Solid with drying (for D model), Customized cycle | |||||||
| Temperature Accuracy | 0.1? | |||||||
| Melting Temperature | 60-100? | |||||||
| Melting Time | 1 to 6000 minutes | |||||||
| Operating Pressure | 0.25Mpa | |||||||
| Maximum Pressure | 0.3Mpa | |||||||
| Steel Basket | 2x(300x200 mm) | 3x(300x200 mm) | 2x(360x280 mm) | 3x(360x220) mm | ||||
| Sterilization Temperature | 105-135? | |||||||
| Sterilization Time Range | 1 to 6000 minutes | |||||||
| Drying Temperature | 80 to 140? | |||||||
| Display | LCD | |||||||
| Drying Time Range | 1 to 300 minutes | |||||||
| Working Temperature | 5 to 45? | |||||||
| Humidity | 10 to 85% | |||||||
| Certification | - | - | - | - | - | - | - | - |
| Storage | 60 cycles, record 1000 process | |||||||
| Power Consumption | 2300 W | 2600 W | 4600 W | 4600 W | ||||
| Dimension | 460x542x1070 mm | 460x542x1070 mm | 620x680x1100 mm | 620x680x1200 mm | ||||
| Net Weight |
|
|
|
|
|
|
|
|
| Electrical Requirement | 220V,16A?50/60HZ | 220V,32A?50/60HZ | ||||||
| Catalogue No. | 580400502 | 580401002 | 580401502 | 580402002 | 580402502 | 580403002 | 580403502 | 580404002 |
Touch Screen Pulse Vacuum Vertical Autoclave/Steam sterilizers IVA-6060 designed with elevating type door, which is more convenient to place and fetch the objects from the autoclave. Build in 7-inch capacitive touch screen, fully automatically controlled, easy to operate.
Vertical Autoclave/Steam sterilizers IVA-1200D are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.

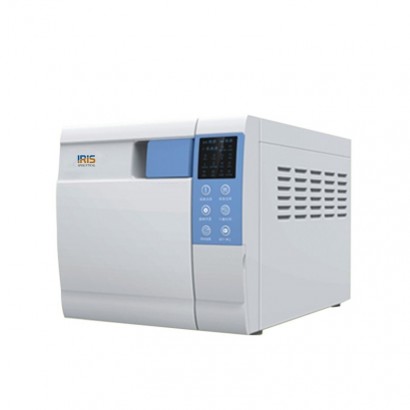

The ITA-216 front loading ‘Benchtop’ autoclave range is available in four sizes. These units require no plumbing, and only a standard single phase power supply. A 5.7-inch colour touchscreen with integrated USB data port. Electro polished stainless steel chamber.
Vertical Autoclave/Steam sterilizers IVA-1800 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
Double Door Horizontal Autoclave/Steam Sterilizer IHA-8200D basic 250L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Touch Screen Pulse Vacuum Vertical Autoclave/Steam sterilizers IVA-6080 designed with elevating type door, which is more convenient to place and fetch the objects from the autoclave. Build in 7-inch capacitive touch screen, fully automatically controlled, easy to operate.
Benchtop Autoclave/Steam Sterilisers ITA-745 provide the broadest range of steam sterilizers and has a solution available to maximize department productivity and optimize workflow. It can be used to Inactivated AIDS (HV), hepatitis B (HBV) mad cow virus and spores.

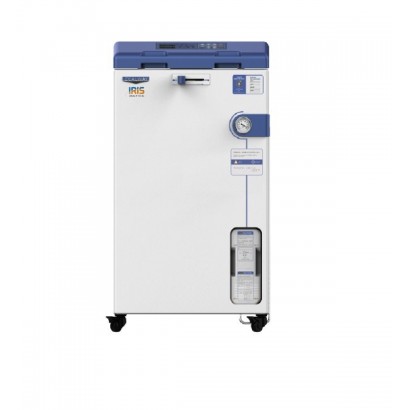

Vertical Autoclave/Steam sterilizers IVA-2200 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
Vertical Autoclave/Steam sterilizers IVA-2400 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
Vertical Autoclave/Steam sterilizers IVA-4075 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
Vertical Autoclave/Steam sterilizers IVA-2600WC are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
Digital Autoclave/Steam Sterilizer IHA-5200 basic 200 L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Horizontal Autoclave/Steam Sterilizer IHA-4300 basic 280L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Programmable Horizontal Autoclave/Steam Sterilizer IHA-7100 basic 196L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Programmable Horizontal Autoclave/Steam Sterilizer IHA-7100 basic 196L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.

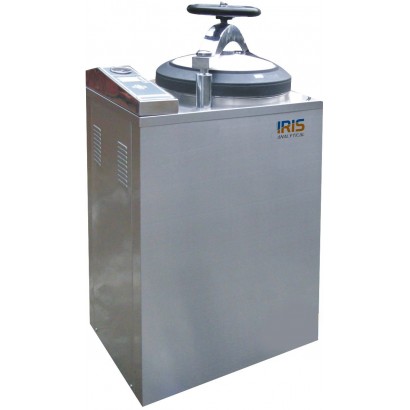

Pulse Vacuum Vertical Autoclave/Steam sterilizers IVA-5100 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply. Equipped with an effective air-cooling system for liquid sterilization.
