Vertical Autoclave/Steam sterilizers IVA-1400 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply. Equipped with an effective air-cooling system for liquid sterilization. This speeds cooling time by up to 40% compared to standard models. The Iris Vertical Autoclaves are available in 54 liters, chamber capacity. All are built with castor wheels as standard making them easy to move. The IVA-1400 is widely used for sterilization applications in laboratory, hospitals, and clinics as well as for industrial sterilization applications in biotechnology and pharmaceutical industries. Comes with sterilization cycle including solid cycle, Liquid cycle, Liquid with warming cycle, Agar cycle, Solid with drying (for D model), Customized cycle.
Data sheet
Model | IVA-1200 | IVA-1200D | IVA-1400 | IVA-1400D | IVA-1600 | IVA-1600D | IVA-1800 | IVA-1800D |
Difference | Without Drying | With Drying | Without Drying | With Drying | Without Drying | With Drying | Without Drying | With Drying |
Capacity | 36 L | 54L | 80 L | 100 L | ||||
Materials | SUS 304 | |||||||
Sterilization Cycle | Solid cycle, Liquid cycle, Liquid with warming cycle, Agar cycle, Solid with drying (for D model), Customized cycle | |||||||
Temperature Accuracy | 0.1? | |||||||
Melting Temperature | 60-100? | |||||||
Melting Time | 1 to 6000 minutes | |||||||
Operating Pressure | 0.25Mpa | |||||||
Maximum Pressure | 0.3Mpa | |||||||
Steel Basket | 2x(300x200 mm) | 3x(300x200 mm) | 2x(360x280 mm) | 3x(360x220) mm | ||||
Sterilization Temperature | 105-135? | |||||||
Sterilization Time Range | 1 to 6000 minutes | |||||||
Drying Temperature | 80 to 140? | |||||||
Display | LCD | |||||||
Drying Time Range | 1 to 300 minutes | |||||||
Working Temperature | 5 to 45? | |||||||
Humidity | 10 to 85% | |||||||
Certification | - | - | - | - | - | - | - | - |
Storage | 60 cycles, record 1000 process | |||||||
Power Consumption | 2300 W | 2600 W | 4600 W | 4600 W | ||||
Dimension | 460x542x1070 mm | 460x542x1070 mm | 620x680x1100 mm | 620x680x1200 mm | ||||
Net Weight |
|
|
|
|
|
|
|
|
Electrical Requirement | 220V,16A?50/60HZ | 220V,32A?50/60HZ | ||||||
Catalogue No. | 580400502 | 580401002 | 580401502 | 580402002 | 580402502 | 580403002 | 580403502 | 580404002 |
| Model | IVA-1200 | IVA-1200D | IVA-1400 | IVA-1400D | IVA-1600 | IVA-1600D | IVA-1800 | IVA-1800D |
| Difference | Without Drying | With Drying | Without Drying | With Drying | Without Drying | With Drying | Without Drying | With Drying |
| Capacity | 36 L | 54L | 80 L | 100 L | ||||
| Materials | SUS 304 | |||||||
| Sterilization Cycle | Solid cycle, Liquid cycle, Liquid with warming cycle, Agar cycle, Solid with drying (for D model), Customized cycle | |||||||
| Temperature Accuracy | 0.1? | |||||||
| Melting Temperature | 60-100? | |||||||
| Melting Time | 1 to 6000 minutes | |||||||
| Operating Pressure | 0.25Mpa | |||||||
| Maximum Pressure | 0.3Mpa | |||||||
| Steel Basket | 2x(300x200 mm) | 3x(300x200 mm) | 2x(360x280 mm) | 3x(360x220) mm | ||||
| Sterilization Temperature | 105-135? | |||||||
| Sterilization Time Range | 1 to 6000 minutes | |||||||
| Drying Temperature | 80 to 140? | |||||||
| Display | LCD | |||||||
| Drying Time Range | 1 to 300 minutes | |||||||
| Working Temperature | 5 to 45? | |||||||
| Humidity | 10 to 85% | |||||||
| Certification | - | - | - | - | - | - | - | - |
| Storage | 60 cycles, record 1000 process | |||||||
| Power Consumption | 2300 W | 2600 W | 4600 W | 4600 W | ||||
| Dimension | 460x542x1070 mm | 460x542x1070 mm | 620x680x1100 mm | 620x680x1200 mm | ||||
| Net Weight |
|
|
|
|
|
|
|
|
| Electrical Requirement | 220V,16A?50/60HZ | 220V,32A?50/60HZ | ||||||
| Catalogue No. | 580400502 | 580401002 | 580401502 | 580402002 | 580402502 | 580403002 | 580403502 | 580404002 |
Vertical Autoclave/Steam sterilizers IVA-4075 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
The ITA-424 front loading ‘Benchtop’ autoclave is pulse vacuum type and range is available in single sizes of 24 litres chamber capacity. These units require no plumbing, and only a standard single phase power supply. Build in 7 Sterilization cycles + 2 User definable cycles + 2 Test programs.
Horizontal Autoclave/Steam Sterilizer IHA-4300 basic 280L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Touch Screen Pulse Vacuum Vertical Autoclave/Steam sterilizers IVA-6020 designed with elevating type door, which is more convenient to place and fetch the objects from the autoclave. Build in 7-inch capacitive touch screen, fully automatically controlled, easy to operate.
The ITA-212 front loading ‘Benchtop’ autoclave range is available in four sizes. These units require no plumbing, and only a standard single phase power supply. A 5.7-inch colour touchscreen with integrated USB data port. Electro polished stainless steel chamber.
Touch Screen Horizontal Autoclave/Steam Sterilizer IHA-3100 basic 100L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Vertical Autoclave/Steam sterilizers IVA-2400C are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
Horizontal Autoclave/Steam Sterilizer IHA-4200 basic 200L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Single Door Horizontal Autoclave/Steam Sterilizer IHA-8200S basic 250L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Pulse Vacuum Vertical Autoclave/Steam sterilizers IVA-5050 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply. Equipped with an effective air-cooling system for liquid sterilization.
Vertical Autoclave/Steam sterilizers IVA-4100 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
Double Door Horizontal Autoclave/Steam Sterilizer IHA-8200D basic 250L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.

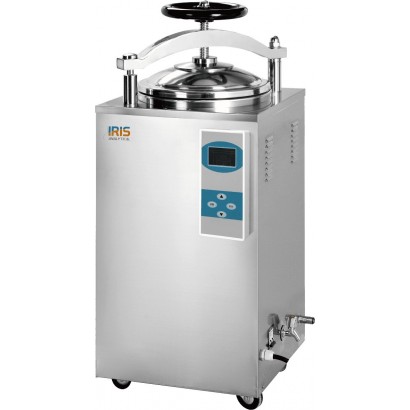

Vertical Autoclave/Steam sterilizers IVA-3135 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
