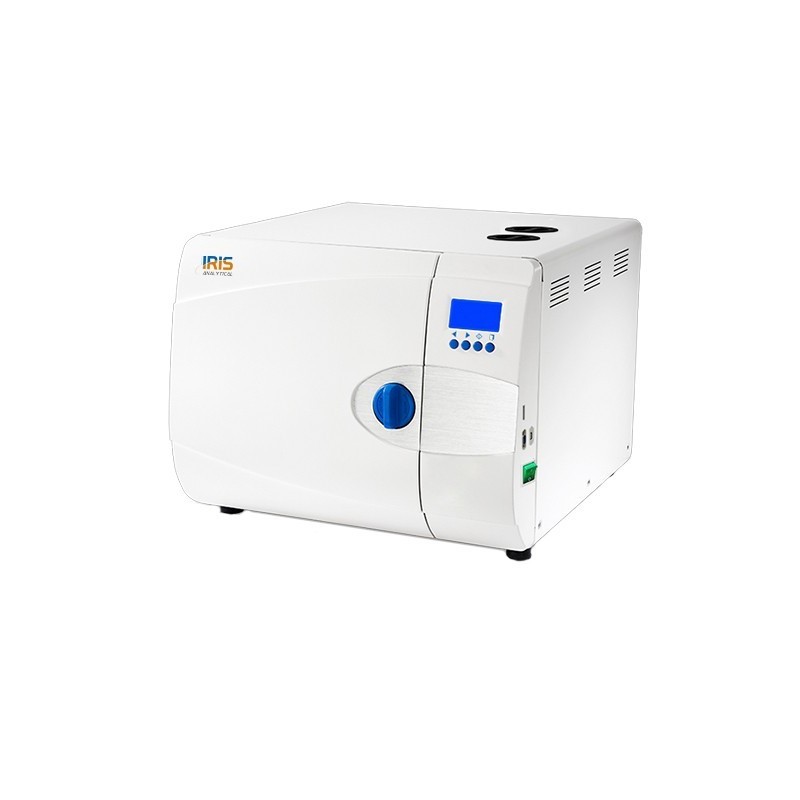

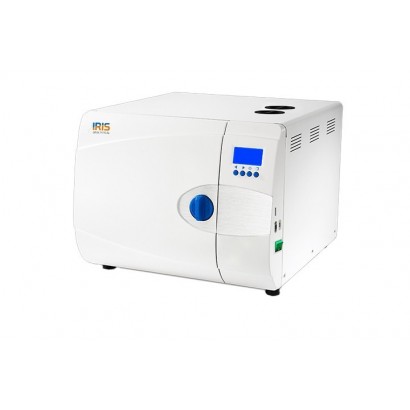

The ITA-424 front loading ‘Benchtop’ autoclave is pulse vacuum type and range is available in single sizes of 24 litres chamber capacity. These units require no plumbing, and only a standard single phase power supply. Build in 7 Sterilization cycles + 2 User definable cycles + 2 Test programs.
The ITA-424 front loading ‘Benchtop’ autoclave is pulse vacuum type and range is available in single sizes of 24 litres chamber capacity. These units require no plumbing, and only a standard single phase power supply. Build in 7 Sterilization cycles + 2 User definable cycles + 2 Test programs.
Data sheet
Model | ITA-424 |
Volume of Chamber | 24 L |
Air Expulsion | Pulse Vacuum |
Sterilization Temp | 121? (1.1 kg/cm²) / 134? (2.1 kg/cm²) |
Dry Function | Adjustable 3 to 30 minutes |
Water Reservoir | Supply tank : 4.5L / Discharge tank : 2.5L |
Sterilization Programs | 7 Sterilization cycles + 2 User definable cycles + 2 Test programs |
Standard Accessory | Sterilization frame, sterilization network disk (375x220x20mm x 4 drive, Note: 3Kg / plate) SUS304 sterilization clip x1 branch network disk removed |
Optional Accessory | Printer sets, SD Card |
Power Consumption | 2000 W |
Net Weight | 57 kg |
Gross Weight | 60 kg |
Size of Chamber | 260x455 mm |
External Dimensions | 560x665x400 mm |
Electrical Requirement | AC 230V±10% 50HZ / 60HZ, 9A |
Catalogue No. | 580150502 |
| Model | ITA-424 |
| Volume of Chamber | 24 L |
| Air Expulsion | Pulse Vacuum |
| Sterilization Temp | 121? (1.1 kg/cm²) / 134? (2.1 kg/cm²) |
| Dry Function | Adjustable 3 to 30 minutes |
| Water Reservoir | Supply tank : 4.5L / Discharge tank : 2.5L |
| Sterilization Programs | 7 Sterilization cycles + 2 User definable cycles + 2 Test programs |
| Standard Accessory | Sterilization frame, sterilization network disk (375x220x20mm x 4 drive, Note: 3Kg / plate) SUS304 sterilization clip x1 branch network disk removed |
| Optional Accessory | Printer sets, SD Card |
| Power Consumption | 2000 W |
| Net Weight | 57 kg |
| Gross Weight | 60 kg |
| Size of Chamber | 260x455 mm |
| External Dimensions | 560x665x400 mm |
| Electrical Requirement | AC 230V±10% 50HZ / 60HZ, 9A |
| Catalogue No. | 580150502 |
