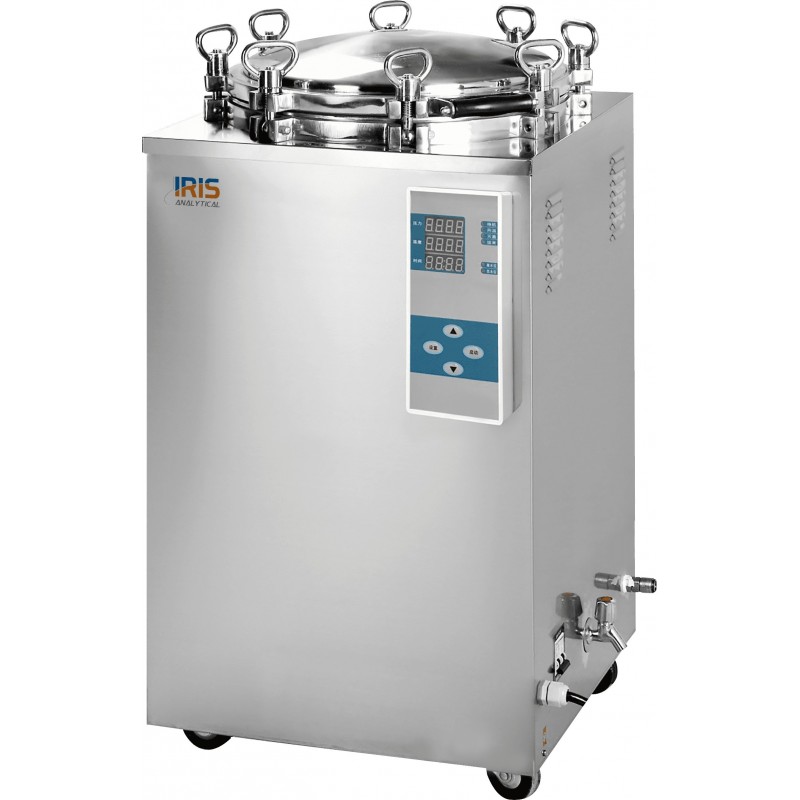

Vertical Autoclave/Steam sterilizers IVA-4030 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply. Equipped with an effective air-cooling system for liquid sterilisation. This speeds cooling time by up to 40% compared to standard models. The Iris Vertical Autoclaves are available from 35 litres chamber capacity. All are built with castor wheels as standard making them easy to move.
The IVA-4030 is widely used for sterilisation applications in laboratory, hospitals, and clinics as well as for industrial sterilisation applications in biotechnology and pharmaceutical industries.
Data sheet
Model | IVA-4030 | IVA-4050 | IVA-4075 | IVA-4100 | IVA-4120 | IVA-4150 |
Capacity | 35 L | 50 L | 75 L | 100 L | 120 L | 150 L |
Sterilizing Chamber Capacity | 318×450 mm | 340×550 mm | 400×600 mm | 440×650 mm | 480×660 mm | 510×740 mm |
Materials | Stainless Steel | |||||
Operating Temperature | 134°C | |||||
Temperature Accuracy | ?±1°C | |||||
Operating Pressure | 0.22 Mpa | |||||
Maximum Pressure | 0.23 Mpa | |||||
Adjustment Of Temperature | 105°C to 134°C | |||||
Display | Touch Digital Display | |||||
Time Range | 0 to 99 minutes | |||||
Certification | CE And ECM | |||||
Power Consumption | 2500 W | 3000 W | 4500 W | 4500 W | 6000 W | 6000 W |
Dimension | 480X460×850 mm | 520×520×980 mm | 560×560×980 mm | 590×590×1080 mm | 600×640×1140 mm | 670×690×1130 mm |
Net Weight | 42 kg | 50 kg | 70 kg | 85 kg | 100 kg | 110 kg |
Gross Weight | 56 kg | 68 kg | 90 kg | 105 kg | 125 kg | 135 kg |
Electrical Requirement | AC220V/50Hz | |||||
Catalogue No. | 580550502 | 580551002 | 580551502 | 580552002 | 580552502 | 580553002 |
| Model | IVA-4030 | IVA-4050 | IVA-4075 | IVA-4100 | IVA-4120 | IVA-4150 |
| Capacity | 35 L | 50 L | 75 L | 100 L | 120 L | 150 L |
| Sterilizing Chamber Capacity | 318×450 mm | 340×550 mm | 400×600 mm | 440×650 mm | 480×660 mm | 510×740 mm |
| Materials | Stainless Steel | |||||
| Operating Temperature | 134°C | |||||
| Temperature Accuracy | ?±1°C | |||||
| Operating Pressure | 0.22 Mpa | |||||
| Maximum Pressure | 0.23 Mpa | |||||
| Adjustment Of Temperature | 105°C to 134°C | |||||
| Display | Touch Digital Display | |||||
| Time Range | 0 to 99 minutes | |||||
| Certification | CE And ECM | |||||
| Power Consumption | 2500 W | 3000 W | 4500 W | 4500 W | 6000 W | 6000 W |
| Dimension | 480X460×850 mm | 520×520×980 mm | 560×560×980 mm | 590×590×1080 mm | 600×640×1140 mm | 670×690×1130 mm |
| Net Weight | 42 kg | 50 kg | 70 kg | 85 kg | 100 kg | 110 kg |
| Gross Weight | 56 kg | 68 kg | 90 kg | 105 kg | 125 kg | 135 kg |
| Electrical Requirement | AC220V/50Hz | |||||
| Catalogue No. | 580550502 | 580551002 | 580551502 | 580552002 | 580552502 | 580553002 |
Benchtop Autoclave/Steam Sterilisers ITA-745 provide the broadest range of steam sterilizers and has a solution available to maximize department productivity and optimize workflow. It can be used to Inactivated AIDS (HV), hepatitis B (HBV) mad cow virus and spores.
Horizontal Autoclave/Steam Sterilizer IHA-2400 basic 180 L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Vertical Autoclave/Steam sterilizers IVA-4075 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
Digital Autoclave/Steam Sterilizer IHA-5200 basic 200 L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Touch Screen Pulse Vacuum Vertical Autoclave/Steam sterilizers IVA-6040 designed with elevating type door, which is more convenient to place and fetch the objects from the autoclave. Build in 7-inch capacitive touch screen, fully automatically controlled, easy to operate.
The ITA-212 front loading ‘Benchtop’ autoclave range is available in four sizes. These units require no plumbing, and only a standard single phase power supply. A 5.7-inch colour touchscreen with integrated USB data port. Electro polished stainless steel chamber.
Steam Sterilisers/Autoclave ITA-820 provide the broadest range of steam sterilizers and has a solution available to maximize department productivity and optimize workflow.
Steam Sterilisers/Autoclave ITA-860 provide the broadest range of steam sterilizers and has a solution available to maximize department productivity and optimize workflow.
Pulse Vacuum Vertical Autoclave/Steam sterilizers IVA-5035 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply. Equipped with an effective air-cooling system for liquid sterilization.
Vertical Autoclave/Steam sterilizers IVA-1400 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
Programmable Horizontal Autoclave/Steam Sterilizer IHA-7100 basic 196L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
Vertical Autoclave/Steam sterilizers IVA-2600WC are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.

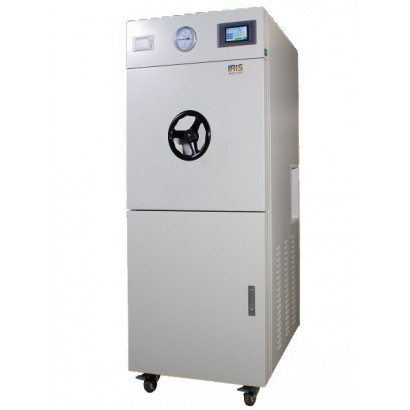

Touch Screen Horizontal Autoclave/Steam Sterilizer IHA-3060 basic 50L horizontal autoclave suitable for sterilizing heavy load and instruments for medical and laboratory use.
