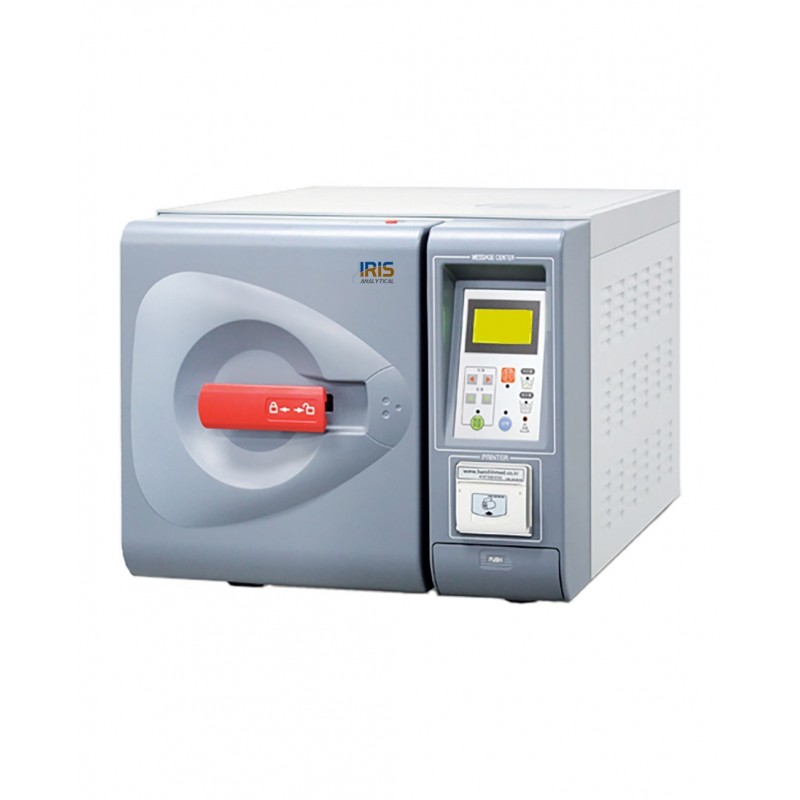

Steam Sterilisers/Autoclave ITA-840 provide the broadest range of steam sterilizers and has a solution available to maximize department productivity and optimize workflow.
The ITA-840 B-Class steam sterilizer is used to sterilize the medical devices including a narrow and long lumen (hollow loads) used frequently in the health care institutions and general medical supplies effectively. Provide 6 kinds of basic cycle program for sterilizing the medical instruments wrapped or unwrapped, the synthetic resins products, the rubber products, the textile products, the glass products, the liquids contained in the glass bottle for Creutzfeldt-Jakob Disease and 2 kinds of test program for checking the ability of air removal from the chamber.
Data sheet
Model | ITA-820 | ITA-840 | ITA-860 |
Chamber Dimension | 255x447 mm | 300xL557 mm | 302x450x302 mm |
Chamber Volume | 22 L | 35 L | 40 L |
Maximum Pressure | 2.4 bar | 2.4 bar | 2.4 bar |
Minimum Pressure | -1.00 bar | -1.00 bar | -1.00 bar |
Material | STS 316L | ||
Maximum Temperature | 138.0? / Test Pressure : 5.13 bar | 138.0? / Test Pressure : 5.13 bar | 138.0? / Test Pressure : 5.13 bar |
Tray | 195x375x18 mm | 236x483x25 mm | 288x410x18 mm |
Collection Container | 6L / 6L(Full water level) | 7.5L / 7.5L(Full water level) | 7.5L / 7.5L (Full water level) |
Operating Temperature | 121 to 135? | ||
Display Resolution | 0.1? | ||
Sterilant | Saturated Steam | ||
Air Removal Method | Vacuum
| ||
Air Removal Device | Vacuum Pump (Diaphragm type) | ||
Air Filter | Filtration efficiency: 99.999% for 0.3? particles | ||
Controls | Microprocessor | ||
Display | Graphic LCD(LED back lighting), Resolution; 128×64 dots | ||
Panel Printer (Optional) | Direct Thermal Printing type, Printing Paper Roll: W58 x Ø40 mm, L=13 m | ||
Power Consumption | 2700 W | 2900 W | 3300 W |
Overall Dimension | 513 x 625 x 442 mm | 615 x 757 x 505 mm | 615 x 757 x 505 mm |
Net Weight | 52 kg | 67 kg | 78 kg |
Electrical Requirements | AC 220V, 50/60Hz | AC 220V, 50/60Hz | AC 230V, 50/60Hz |
Catalogue Number | 580350502 | 580351002 | 580351502 |
| Model | ITA-820 | ITA-840 | ITA-860 |
| Chamber Dimension | 255x447 mm | 300x557 mm | 302x450x302 mm |
| Chamber Volume | 22 L | 35 L | 40 L |
| Maximum Pressure | 2.4 bar | ||
| Minimum Pressure | -1.00 bar | ||
| Material | STS 316L | ||
| Maximum Temperature | 138.0? / Test Pressure : 5.13 bar | ||
| Tray | 195x375x18 mm | 236x483x25 mm | 288x410x18 mm |
| Collection Container | 6L / 6L(Full water level) | 7.5L / 7.5L(Full water level) | 7.5L / 7.5L (Full water level) |
| Operating Temperature | 121 to 135? | ||
| Display Resolution | 0.1? | ||
| Sterilant | Saturated Steam | ||
| Air Removal Method | Vacuum
| ||
| Air Removal Device | Vacuum Pump (Diaphragm type) | ||
| Air Filter | Filtration efficiency: 99.999% for 0.3? particles | ||
| Controls | Microprocessor | ||
| Display | Graphic LCD(LED back lighting), Resolution; 128×64 dots | ||
| Panel Printer (Optional) | Direct Thermal Printing type, Printing Paper Roll: W58 x Ø40 mm, L=13 m | ||
| Power Consumption | 2700 W | 2900 W | 3300 W |
| Overall Dimension | 513 x 625 x 442 mm | 615 x 757 x 505 mm | 615 x 757 x 505 mm |
| Net Weight | 52 kg | 67 kg | 78 kg |
| Electrical Requirements | AC 220V, 50/60Hz | AC 220V, 50/60Hz | AC 230V, 50/60Hz |
| Catalogue Number | 580350502 | 580351002 | 580351502 |
Vertical Autoclave/Steam sterilizers IVA-2200 are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.

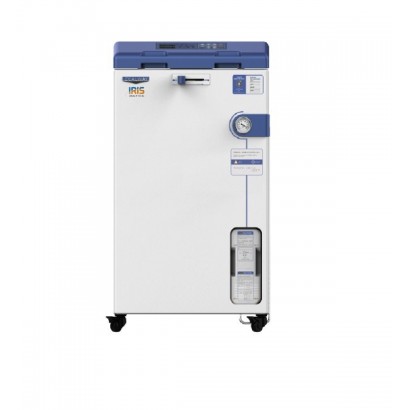

Vertical Autoclave/Steam sterilizers IVA-2600C are floor standing self-contained sterilizer units that require no plumbing and operate from a standard single-phase power supply.
